DEEP SEA Electronics CONTROL PANELS

DeepSea Panels (DSE Genset) DSE Electronics — Industry leading Generators and ATS Control Modules.

We carry an extensive inventory and train our clients and local network on
Deep Sea Panels for
FG Wilson, Mitsubishi and SR Power Generators

DSEGenset® is an intelligent range of single-set and multi-set generator control solutions, mains (utility) protection relays, lighting tower control solutions, digital automatic voltage regulators (AVR's), remote communications devices and expansion modules. Each range has been designed and manufactured by industry leading experts to deliver a range of features and benefits that set new standards across the industry.

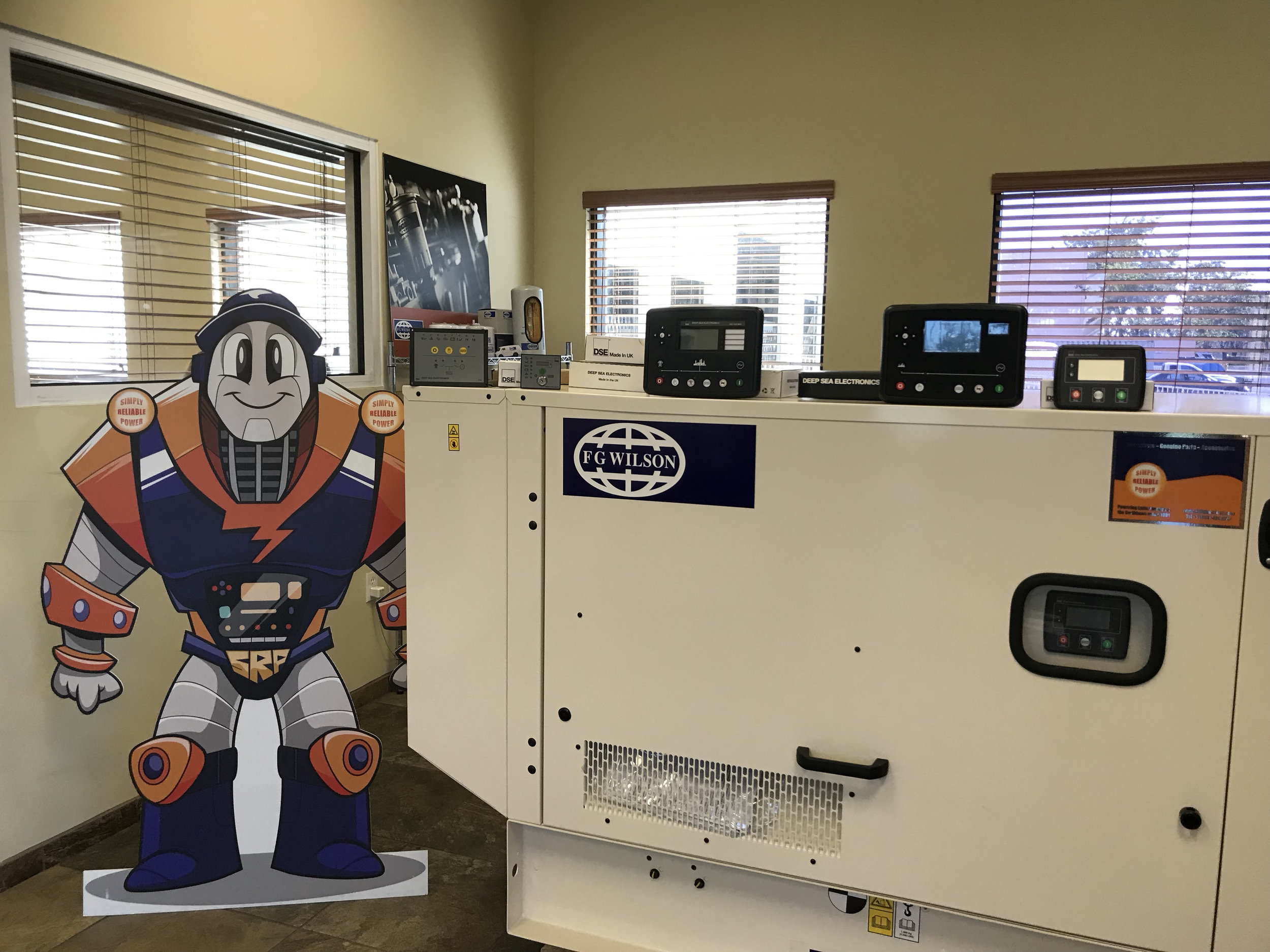

Here are some of them in our warehouse at Miramar, Florida, where we not only carry an extensive inventory but we provide support and training.

Click on the button below to review the DSE Electronics Product Guide and contact us at info@srpamericas.com for quotes and detailed information.

DSE Electronics Product Guide

Take a look at some of the rigorous tests DSE Modules go through to ensure a consistent level of quality.

En este video @SRPAmericas muestra como aplicar el Método de los 4 Pasos, para configurar un Panel de Control Deep Sea 8610 y lograr un sincronismo exitoso de plantas eléctricas FG Wilson. www.SRPAmericas.com #SimplyReliablePower

En este video mostramos el proceso de verificacion de compatibilidad entre generadores FG Wilson P438-3 y dos variadores de frecuencia, instalados a campo abierto, en una mina ubicada en las cercanias de Cucuta, Colombia. #SimplyReliablePower www.SRPAmericas.com @SRPAmericas

DeepSea Panels Inventory

Featured

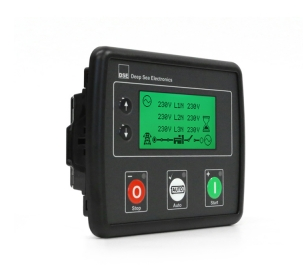

DSE4520 MKII

Auto Mains (Utility) Failure Control Module

A compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)
PANEL CUTOUT SIZE
118 mm x 92 mm (4.6" x 3.6")
MAXIMUM PANEL THICKNESS:
8.0 mm (0.3”)
WEIGHT: 0.26kg
PRODUCT VARIANTS
4520-05 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)
4520-06 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc, Htr)

Request a quote

DSE7310 MKII

Auto Start Control Module

A powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Genset applications.

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7310-03 - 7310 MKII Autostart Control Module

Request a quote

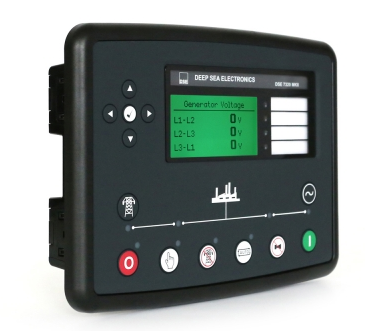

DSE7320 MKII

Auto Mains (Utility) Failure Control Module

A powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7320-03 - 7320 MKII Auto Mains (Utility) Failure Control Module

Request a quote

DSE7410

Auto Start Control Module

A sophisticated mono display auto start control module packed with industry leading features to enhance single-set control. The module can be used across a wide range of diesel and gas genset applications.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT: 0.88kg
PRODUCT VARIANTS
7410-01 - 7410 Auto Start Control Module

Request a quote

DSE8610 MKII

Synchronising & Load Sharing Control Module

The latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry. OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")WEIGHT: 0.88kg

PRODUCT VARIANTS
8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc) Calculating Fuel Efficiency and Meeting Green Emission Directives Paper

Request a quote

DSE9130

12 volt 5 amp Compact Battery Charger

The DSE9130 12 volt 5 amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections. OVERALL SIZE
136 mm x 140 mm x 63 mm (5.4” x 5.5” x 2.5”)
WEIGHT: 0.5kg
PRODUCT VARIANTS
9130-00 - 12 volt 5 amp Compact Battery Charger (90v-305v 50/60Hz)

Request a quote
